AKG - C414XL II

The classic C12 sound



The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.





The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.





General Specifications

Audio frequency bandwidth: 20 - 20000 Hz

Equivalent noise level: 6 dB-A

Sensitivity: 23 mV/Pa

Signal to Noise: 88 dB-A

Preattenuation Pad: -6; -12; -18 dB

Bass cut filter: 160; 80; 40 Hz

Electrical impedance: 200 Ohms

Recommended load impedance: 2200 Ohms

Polar Patterns: Omnidirectional, Wide Cardioid, Cardioid, Hypercardioid, and Figure of Eight



Dimensions

Length 38 mm

Width 50 mm

Height 160 mm

Net Weight 300 g



Design

Finish: dark gray/gold

Audio Output Type: Balanced XLR

Gender: Male

Contacts: 3-pin



Powering Interface

Voltage: 44 to 52 V

Current: 4.5 mA



Application

Pro Studio: Yes



Instrument

Vocals: Yes

Piano / Strings: Yes

Horns / Woodwinds: Yes

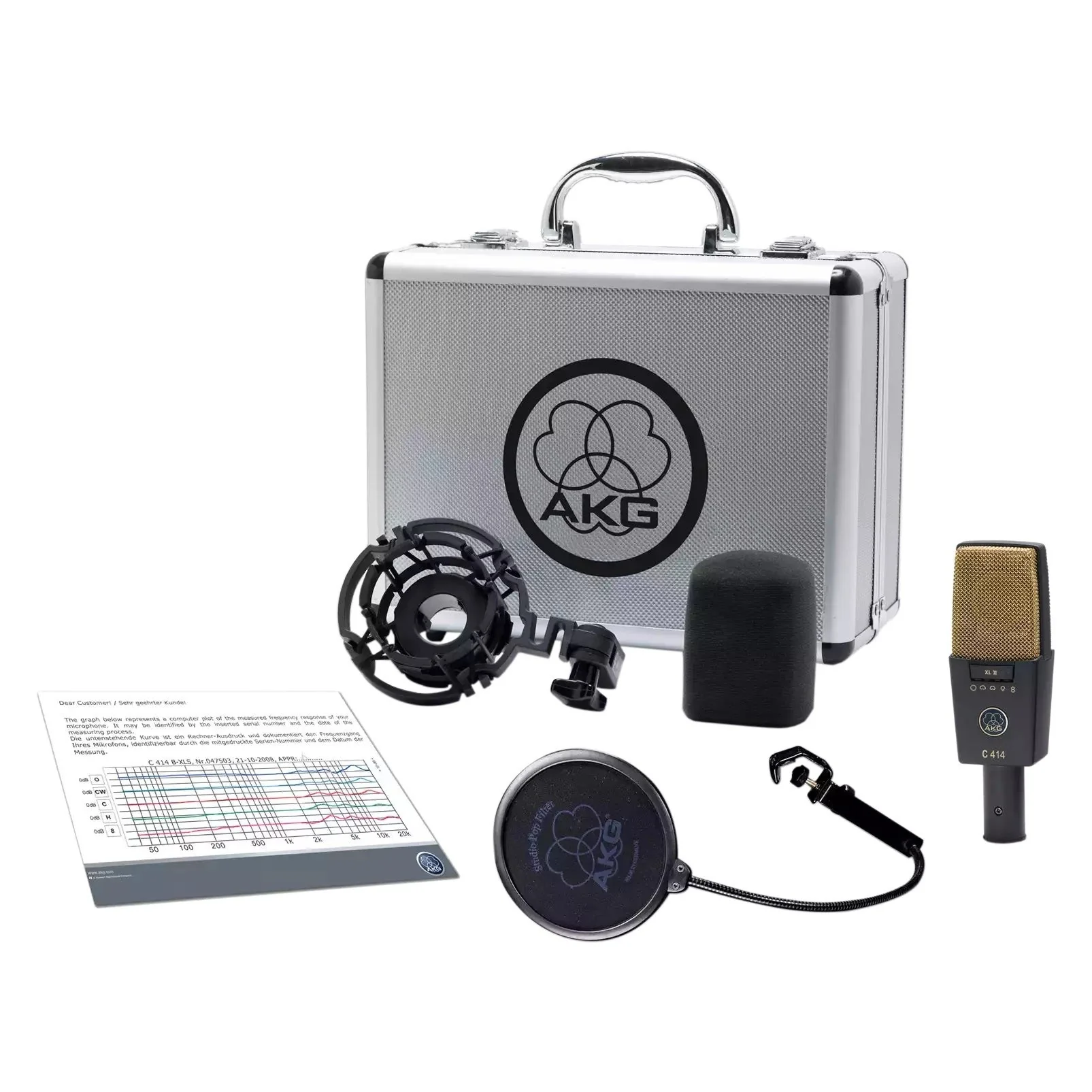

Whats in the box:

    1 x C414 XLII Microphone

    1 x H85 Universal Shock Mount

    1 x Metal Carrying Case

    1 x PF80 Pop Filter

    1 x W414 Windscreen C414
