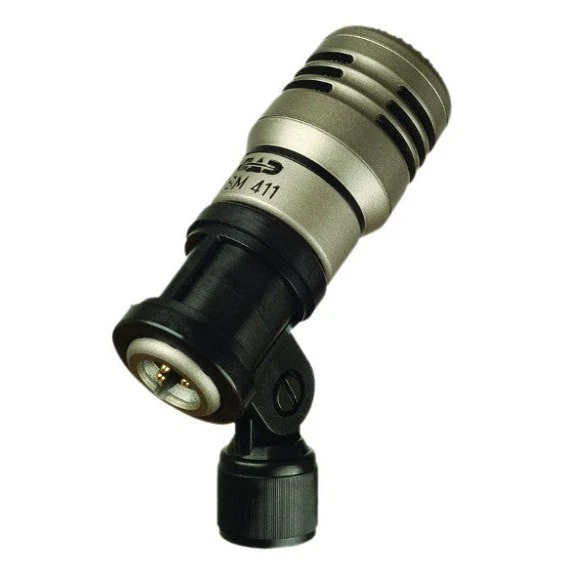

CAD - TSM411 Supercardioid Dynamic Snare Microphone

The TSM411 is a supercardioid, moving-coil dynamic microphone specifi cally designed for the capture and reinforcement of acoustic percussive instruments. The dual-point, polymer, capsule-suspension system and the supercardioid polar pattern provide vibration isolation and off-axis rejection crucial for on-stage clarity. Neodymium magnetics allow reduced coil mass for transient agility and impedance reduction. Although designed with percussion in mind, excellent results are also obtained when used on most electrical and acoustical instruments. The die-cast metal body and hardened protective steel screen provide rugged durability. Shock-isolating swivel mount is included.

Supercardioid Dynamic Microphone
Applications:
Snare Drum
Rack Toms
Percussion
Electric/Acoustic Instruments

Operating Principal: Moving Coil Dynamic
Polar Pattern: Supercardioid
Frequency Response: 100Hz -15KHz
Sensitivity: -56dBV (1.6mV) @ 1 Pa
Impedance: 310 ohms
Weight: 7.9oz [0.23Kg]
