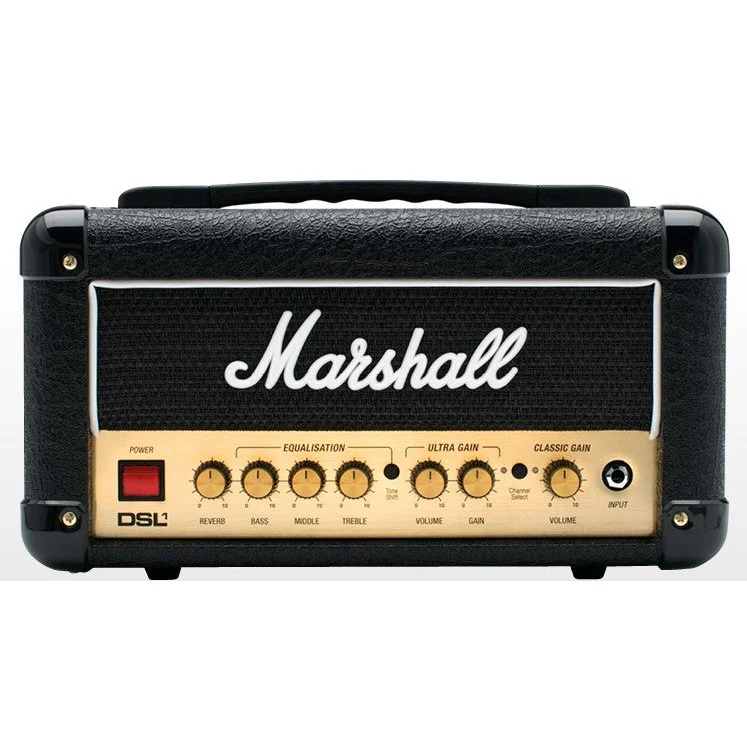

Marshall - DSL1H
Marshall The DSL1H has the classic Marshall tone and features expected on a DSL but at a lower power to suit those who play at home. The sound has been perfectly crafted to suit those with eclectic tastes, looking for tonal experimentation.
Technical Specification
General
Model DSL1HR
Range DSL
Technology Valve
Channels 2, ultra gain and classic gain
Electronics
Output wattage 1W with optional power reduction to 0.1W
Outputs 1 x 1/4" jack speaker output, 16Ī© load only, 1 x 3.5mm jack emulated line out
Inputs 1 x 1/4" instrument jack, 1 x 3.5mm jack aux in, footswitch
Controls Classic gain channel with volume, ultra gain channel with gain and volume control, channel select switch, tone shift switch, treble, middle, bass, reverb and power reduction option
Effects Digital reverb
Effects loop Yes, series, send/return
Valves
Preamp valves 2 x ECC83
Power amp valves 1 x ECC82
Accessories
Footswitch PEDL-90011 included
Cable Detachable power cable included
Dimensions (including feet and handle)
Weight 5.6 kg / 12 lbs
Width 360 mm / 14.2"
Height 210 mm / 8.3"
Depth 215 mm / 8.5"
