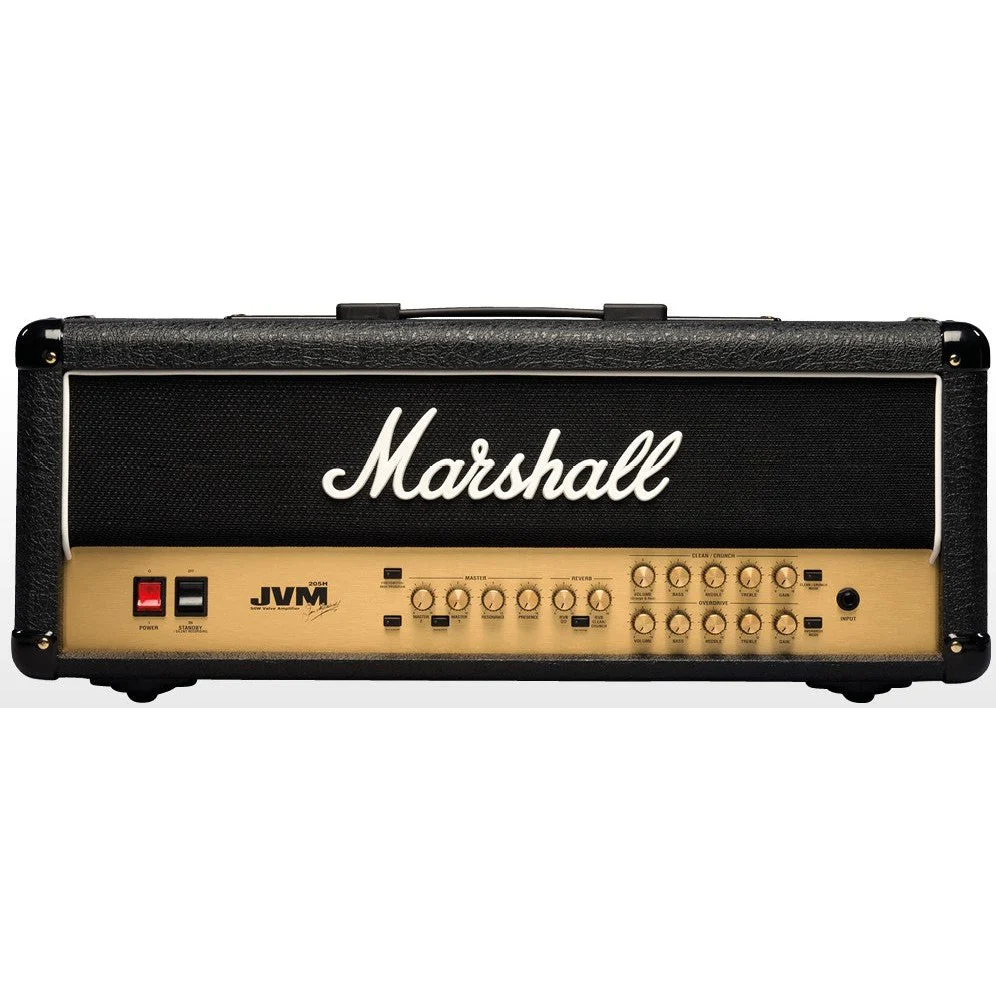

Marshall - JVM205H 50watt Valve Head
Enhance your sound with the extensive features of the 50w JVM205HTM. With a versatile and broad sound palette your musical talent is intensified no matter where you perform. Green, orange and red LED indicator lights will guide you through the sound palette and the modes of the two channels.
Technical Specification
General
Model JVM205H
Range JVM
Technology Valve
Channels 2 (Multi)
Electronics
Output wattage 50w
Outputs Speaker outputs: 5 x 1/4" jack sockets (16Ω load / 8Ω load / 4Ω load), Emulated Line Out (XLR), MIDI Thru
Inputs 1 x 1/4" jack instrument input, MIDI In, Footswitch
Controls Channel and mode select (button), gain (per channel), treble (per channel), middle (per channel), bass (per channel), reverb (per channel), presence, resonance, master volume select, master volume (switchable for each channel)
Effects Digital reverb
Effects loop 2, 1 x series parallel, 1 x series
Valves
Preamp valves 4 x ECC83, 1 x ECC83 (phase splitter)
Power amp valves 2 x EL34
Accessories
Footswitch PEDL-91006 included
Cable Detachable power cable included, Speaker cable included
Dimensions (including feet and handle)
Weight 17.5 kg / 39 lbs
Width 740 mm / 29.1"
Height 310 mm / 12.2"
Depth 215 mm / 8.5"
