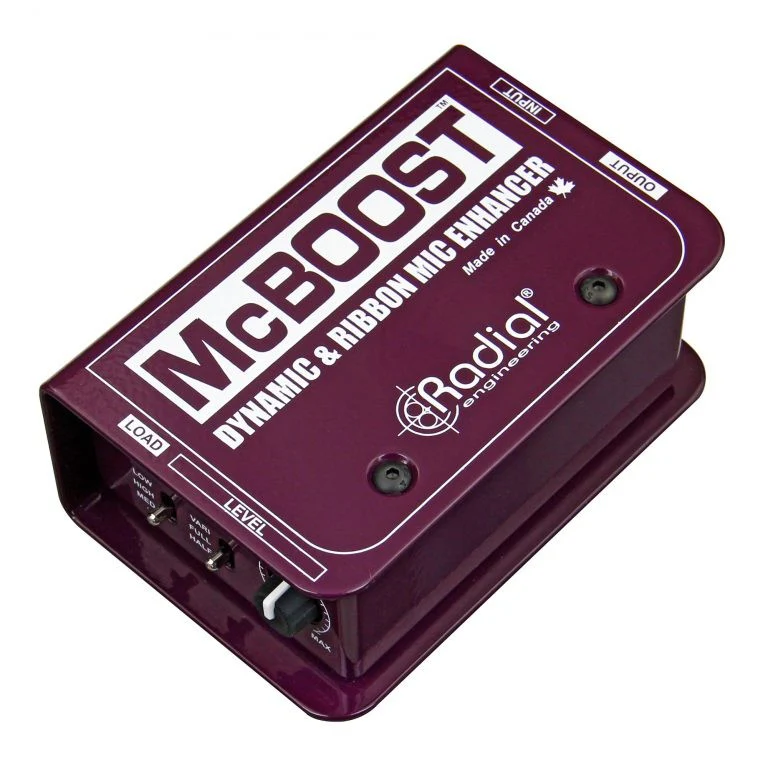

Radial - McBoost 25dB Mic R8008016

Features • Fully variable 25dB booster for dynamic and ribbon mics • Extends dynamic range and microphone reach • Uses standard 48V phantom for powering • 3 position load switch and high-pass filter for greater control Benefits • Boosts low output mic signals to a usable level • Improves signal-to-noise on long cable runs • Improves signal-to-noise with vintage audio gear • High pass filter cleans up muddy low end Cool stuff • Will breathe new life into your old SM57 • Makes your dynamic think it is a condenser • Does not require any power supply • Works on dynamics and ribbon mics Dimensions (W x L x H) • 70 x 108 x 44mm (2.75” x 4.25” x 1.75”) • Made in Canada, with pride! • 3 Year transferable warranty Specifications Audio circuit type: Class-A Differential DC Coupled FET Frequency response: <7Hz to >30kHz Dynamic range: 116dB Gain: +26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain Clip Level: +16dBu (output) Total harmonic distortion: 0.006% Intermodulation Distortion: 0.01% Phase Deviation: <10° Input Impedance: 600Ω / 2.7kΩ / 30kΩ Output Impedance: 220Ω Common Mode Rejection Ratio: >50dB Equivalent Input Noise: -125dBu Noise: -100dBu / -110dBu Features Input Connectors: XLR female output Output Connectors: XLR male output General Construction: Cold Rolled Steel Power: Phantom Power - 48V Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable
