Radial - SB-5 Laptop DI R800 0150

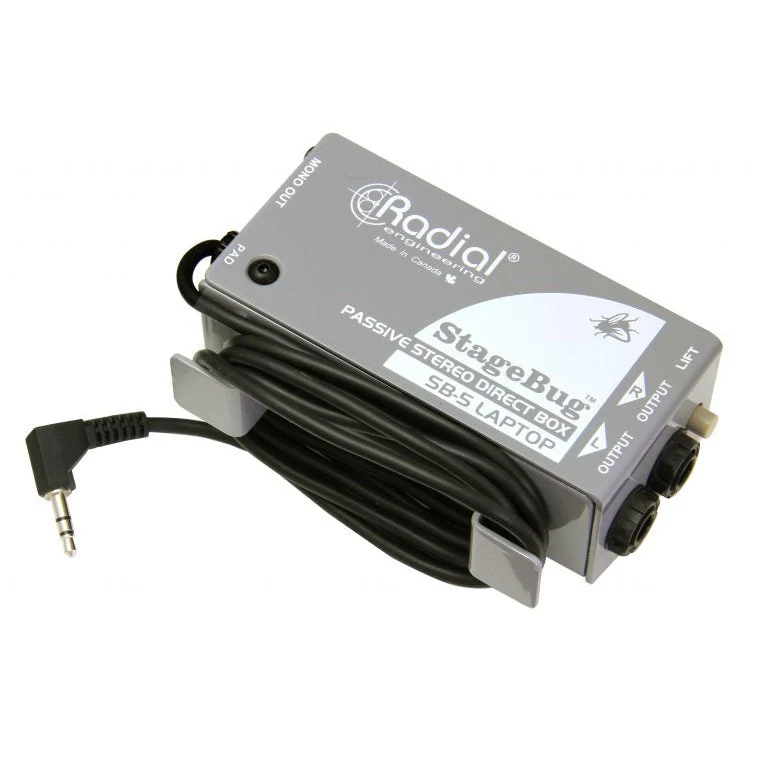

The Radial Stage Bug SB-5 Laptop is a stereo direct box designed to easily integrate with laptop computers and other audio sources that employ a mini 3.6mm (1/8″ TRS) connector. It features an integral cable and storage cleat for easy deployment. inside, the passive design features two custom transformers that perform the balancing and impedance conversion. Transformer isolation benefits by eliminating hum and buzz caused by ground loops. Although remarkably compact and affordable, the SB-5 produces a exceptionally linear response with almost zero phase shift and less than 0.2% distortion at all frequencies. This makes the Stage Bug SB-5 an excellent choice for audio playback via PA systems, audio-visual integration and portable DJ setups. Specifications Audio circuit type: Passive, transformer based Number of channels: Two channels Frequency response: 20Hz ~ 20KHz (± 1dB) Dynamic range: 100dB Total harmonic distortion: 0.01% @ 1kHz Phase Deviation: 2° @ 100Hz; 5° @ 50Hz Input Impedance: 40k Ohms, unbalanced Output Impedance: 2.8k Ohms, balanced Maximum Input: +20dB Features Input pad, Mono Sum, Ground lift Input Connectors: 3.5mm Output Connectors: 1/4" TRS, XLR General Construction: 14 gauge steel chassis & outer shell Size (L x W x D): 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm) Power: Passive, no power required Conditions: For use in dry locations only between 5°C and 40°C Warranty: Radial 3-year, transferable
