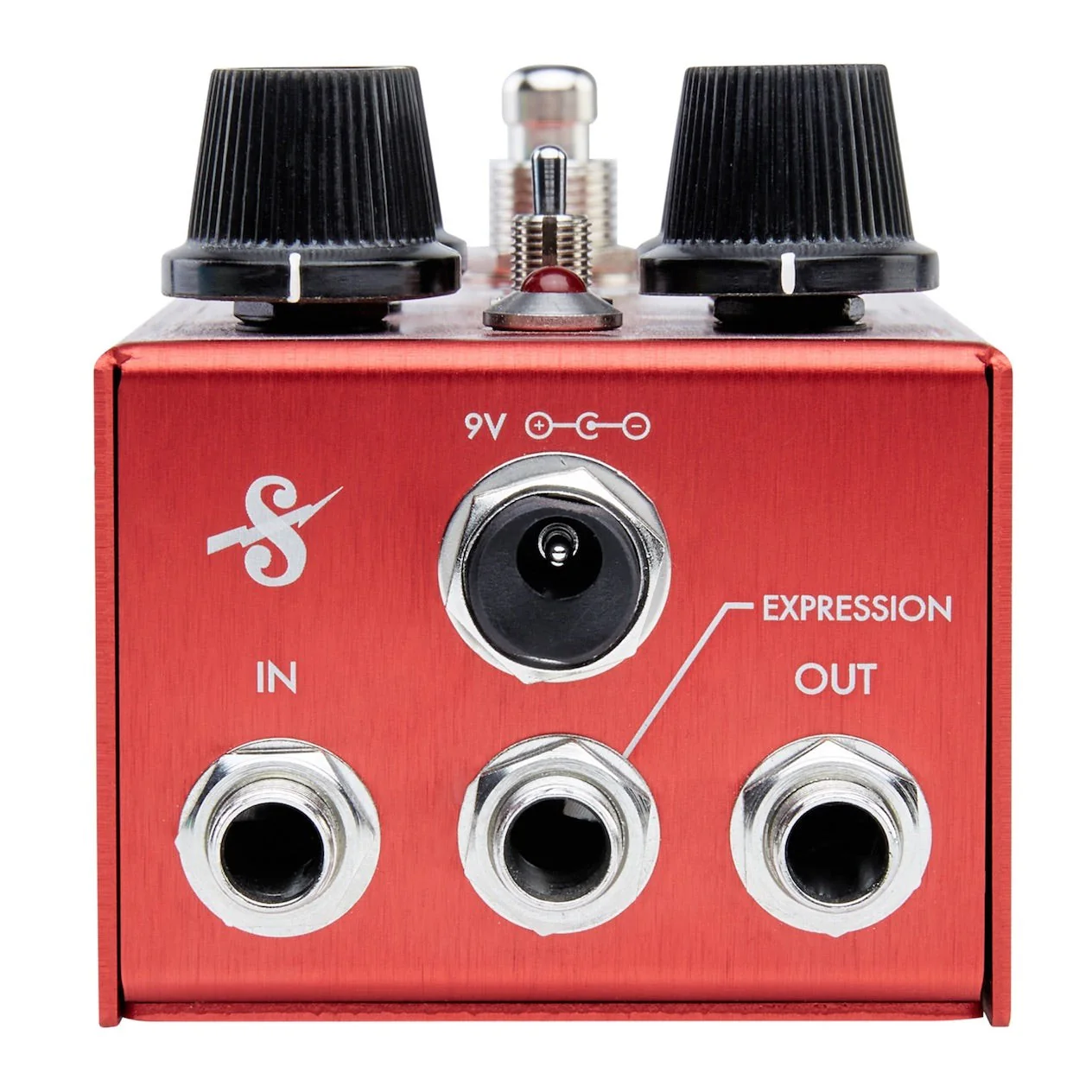

Supro - Delay

HI-FI ANALOG ECHO

Our flagship pedal, the Supro Delay offers the vintage echo effects of the 60s and 70s while showcasing the latest in pedal technology. The all-analog Supro Delay comes equipped with a pair of high-voltage MN3005 IC chips capable of producing up to 600ms of delay time, while providing dramatically increased headroom, dynamic range, and clarity. The newly-designed Filter knob ranges from low-pass to band-pass functions, spanning from dark, warm, and murky tones to crisp and bright tape echoes. Additionally, an assignable Expression pedal control provides the player with the ability to switch between Repeats, Time, and Level while maintaining custom knob settings. Runs on standard 9VDC.

KNOB-BY-KNOB

Level: Sets the volume of the delay
Time: Sets the length of the delay
Filter: Contours the tone of the delay
Repeats: Sets the amount of feedback in the delay line
Expression: Selects which knob is controlled by the expression pedal

ICONIC DESIGN

Drawing inspiration from the golden era of analog pedals and recording to tape, the Supro Delay was designed by Howard Davis, master engineer behind the legendary late-1970’s EHX Deluxe Memory Man and the Pigtronix Echolution.

CHORUS

ANALOG | 9VDC
A full-stereo modulation stompbox offering the most luscious Chorus effect possible in pedal form while maintaining exceptional headroom.

ELECTRONICS

POWER
9VDC
CURRENT DRAW
100mA
INPUT IMPEDANCE
10M
OUTPUT IMPEDANCE
150ohms
BODY
LENGTH (IN)
4.9
WIDTH (IN)
3.2
HEIGHT (IN)
3.2
WEIGHT (LBS)
1
