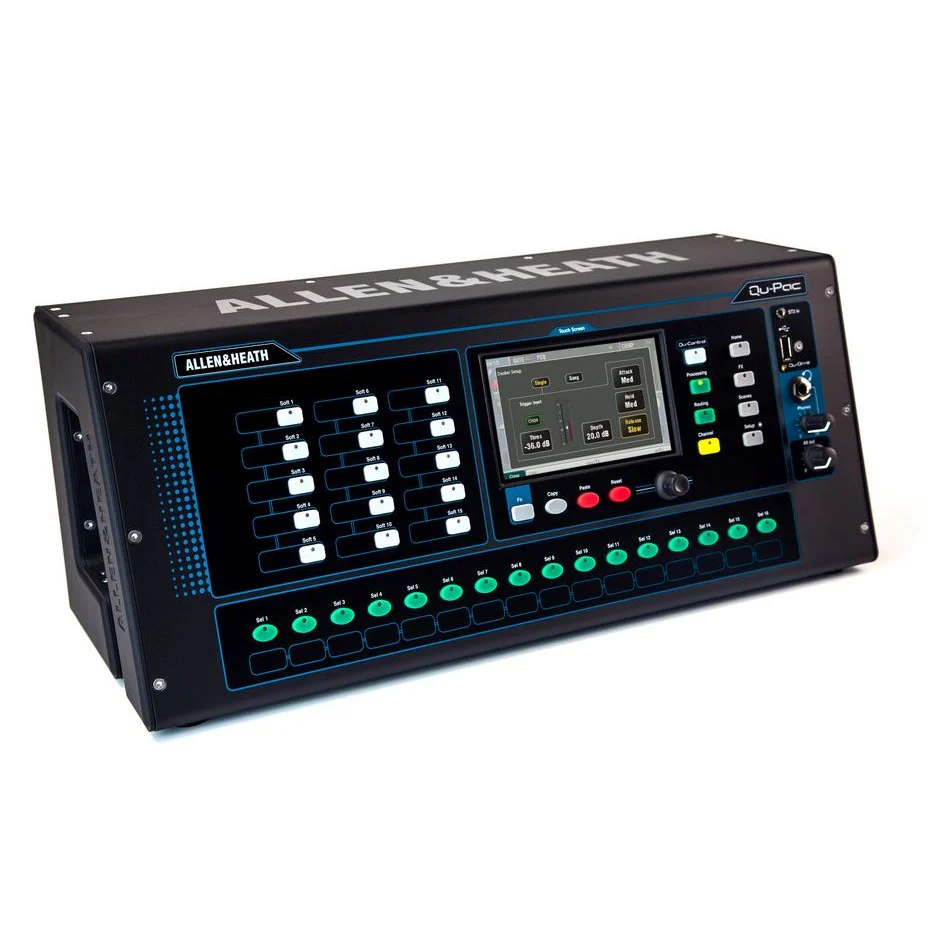

Allen & Heath - QU-PAC
Qu-Pac takes the power and legendary quality of the Qu family and shrinks it into an uber-compact desk or rack mount format. Qu-Pac frees you to mix from your iPad, but the full functions of the mixer can also be accessed from the front panel and touchscreen.
With custom settings and Cat5 expansion up to 38 inputs, Qu-Pac provides a scalable, failsafe solution for hardworking bands, schools, hotels, corporate events, live music bars, conferences, personal mixing and many more scenarios requiring a pro mixing solution in a tiny footprint.
User permissions and the customizable Qu-Control screen make Qu-Pac convenient and safe for day-to-day use by non-technical staff.
Features
16 acclaimed AnaLOGIQTM recallable preamps
16 on-board Mic / Line Inputs (XLR / TRS)
Expandable up to 38 inputs via dSNAKETM
3 Stereo Inputs (TRS)
32 Mono + 3 Stereo Input Channels
12 on-board Mix Outputs (XLR)
4 Stereo Groups
2 Stereo Matrix Outs
AES Digital Out
4 DCA Groups
4 Mute Groups
Qu-Pad iPad App for all live mixing controls
Qu-You iPhone App for personal monitoring
Qu-Drive direct Multitrack Recording / Playback on USB drives
15 Soft Keys
16 Custom Select keys
Qu-Control custom screen to suit application
4 FX Engines
4 FX Sends / Returns
32×32 USB Audio Interface
5” Touchscreen
iLive FX Library
Compatible with ME Personal Mixing System
Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
Built-in Signal Generator
RTA with Peak Band indication
