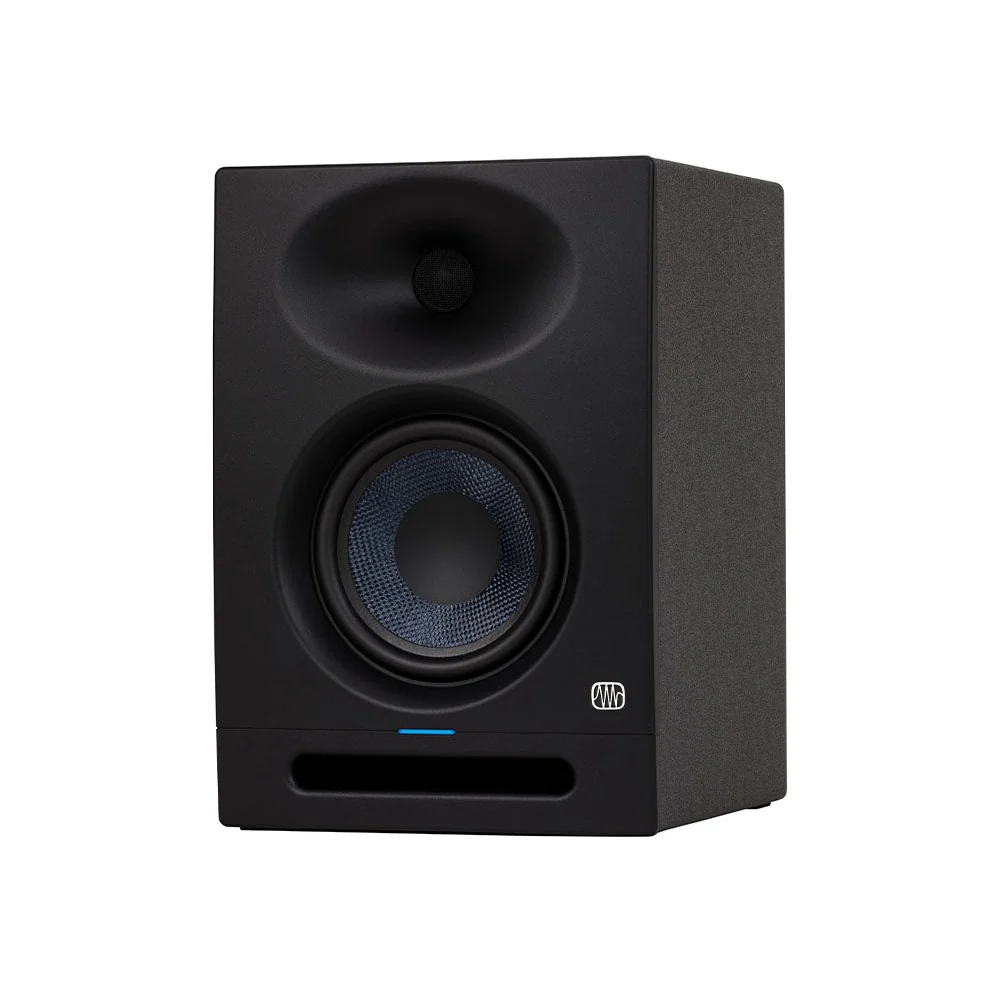

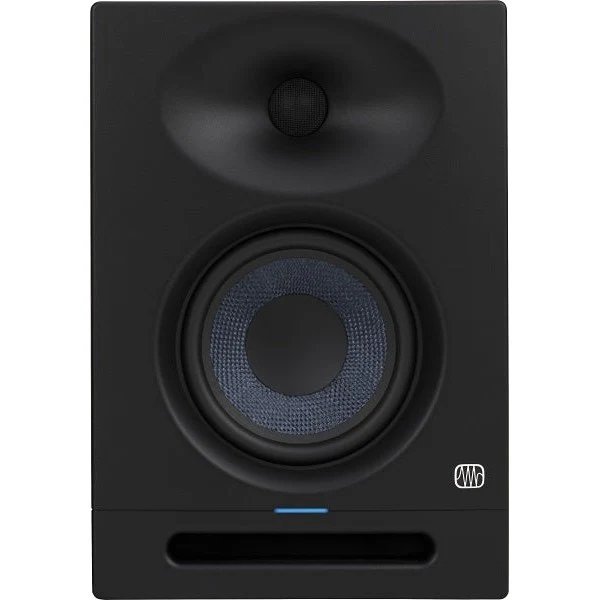

PreSonus - Eris® Studio 5 (Single)

5.25-inch 2-Way Active Studio Monitors with EBM Waveguide:
- Building on the reputation of its award-winning predecessors, the Eris® Studio 5 is a substantial update that delivers richer low-end and more controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class. Designed for superior performance in both home studio and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it a class all its own.
- The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, and a silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
- The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80 W of biamped power make the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz - without a subwoofer!

Features:
- 5.25-inch Woven Composite Low-Frequency Driver
- 1-inch, Ultra-Low Mass, Silk-Dome, High Frequency Driver
- Crossover Frequency: 3.5 kHz
- 120˚ x 60˚ EBM Waveguide Provides a Sweet Spot
- Front-Firing Acoustic Port for Superior Bass-Frequency Reproduction and Optimized /// Resonance-Suppressing Internal Bracing
- 80 W Class AB Dual Amplification
- 48 Hz to 20 kHz Frequency Response
- 102 dB Peak SPL (@ 1 Meter)
- Acoustic Tuning Controls: Acoustic Space (Flat, -2 dB, -4 dB) /// High Frequency (±6 dB, Center 10 kHz, Continuously Variable) /// Mid Frequency (±6 dB, Center 1 kHz, Continuously Variable) /// Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / Octave)

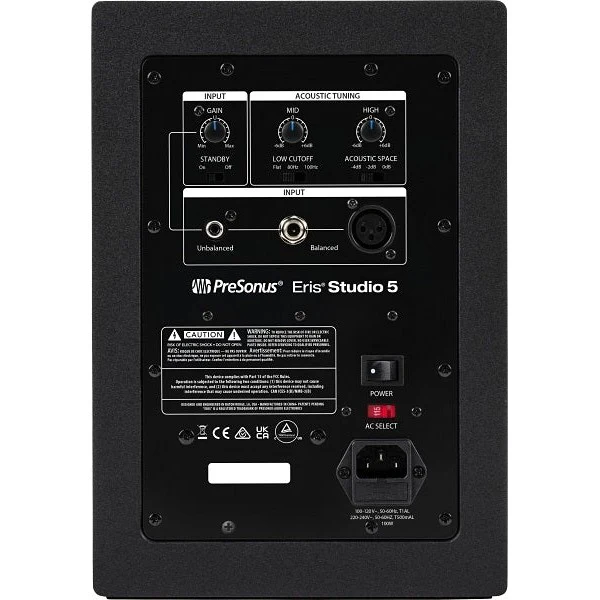

- Inputs: XLR and 1/4-inch TRS Balanced Rear-Panel Inputs /// RCA Unbalanced Rear-Panel Inputs
- Protection: RF Interference /// Output-Current Limiting /// Over-Temperature /// Turn-On/Off Transient /// Subsonic Filter
- Power Saver Mode (Engages After 40 Minutes)

Set Up Your Studio Monitors for Your Room:
- Eris® Studio 5 active monitors are equipped with Acoustic Tuning controls to ensure the flattest response in your mix environment. You get Low Cut, Mid, and High controls, as well as three-way Acoustic Space tuning that makes it easy to compensate for the boundary bass boost that occurs when a speaker is placed too close to a wall.

Honest. Expressive. Powerful:
- Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.

Electronics:
- Voltage: 100 - 120 V
- Wattage: 80 Watts

Hardware:
- Cabinet Material: Vinyl-Laminated, Medium-Density Fiberboard

Miscellaneous:
- Connection Type: IEC

Monitors:
- Protections: RF Interference /// Output-Current Limiting /// Over-Temperature /// Turn-On/Off Transient /// Subsonic Filter
- Audio Switches: Acoustic Space (Flat, -2 dB, -4 dB) /// Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / Octave)
- Audio Controls: Volume: High Frequency (±6 dB, Center 10 kHz, Continuously Variable) /// Mid Frequency (±6 dB, Center 1 kHz, Continuously Variable)
- Peak SPL: 102 dB (@ 1 Meter)
- Crossover Frequency: 3.5 kHz
- Monitor Inputs: 1 x Balanced XLR /// 1 x Balanced ¼” TRS /// 1 x Unbalanced RCA
- HF Transducers: 1” Ultra Low Mass, Silk Dome Tweeter
- LF Transducers: 5.25" Woven Glass Fiber Composite
- Frequency Response: 48 Hz - 20 kHz
- Input Impedance: 10 kOhm
- Coverage Pattern: 100 degree (H) x 60 degree (V)
- Monitor Amplifier Power: LF Amplifier: 45 W /// HF Amplifier: 35 W

Specifications:
- Input Impedance: 10 kOhm
