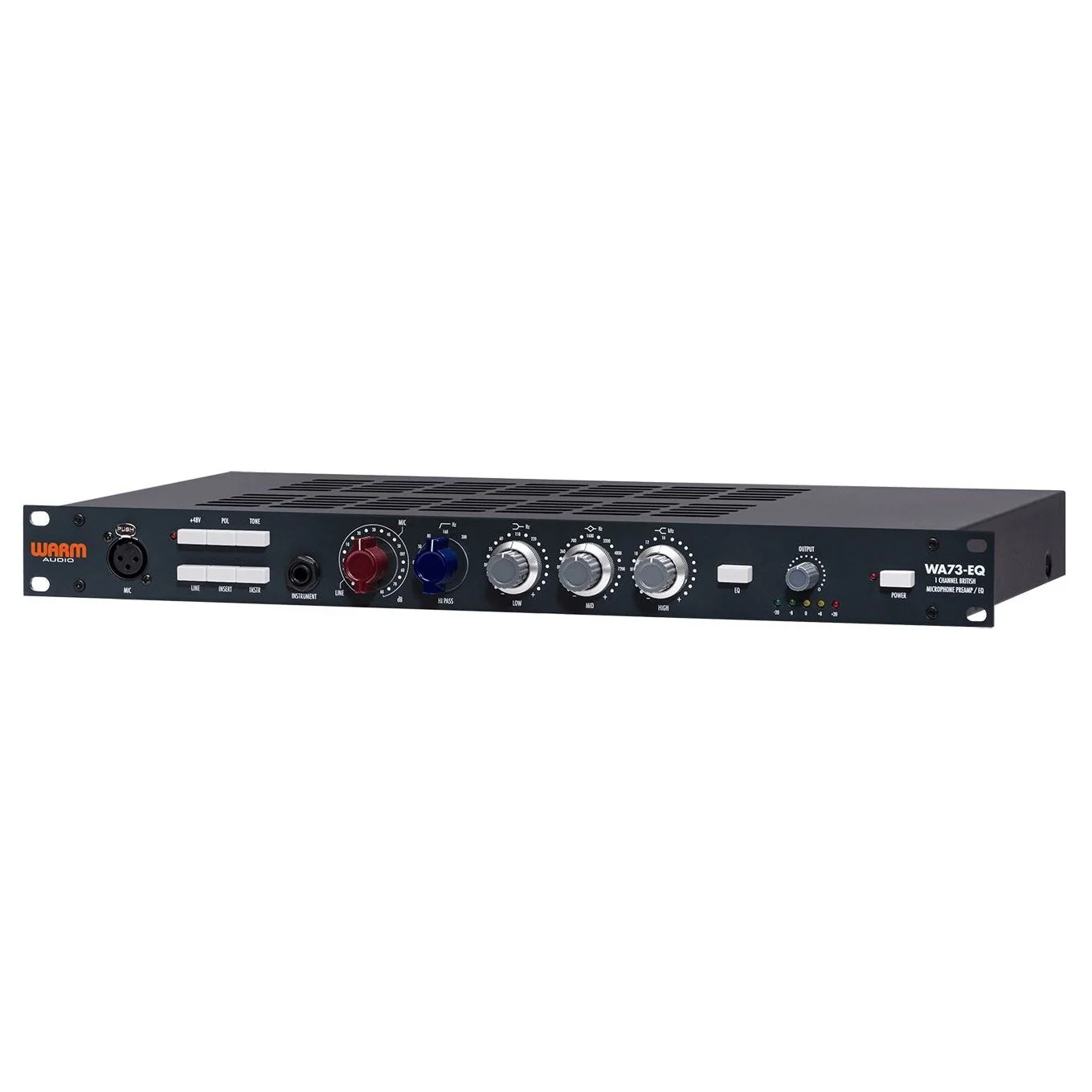

Warm Audio - WA73-EQ Single Channel British Mic Pre + EQ

Technical Specification

SINGLE CHANNEL, CLASS A, '73-STYLE BRITISH MICROPHONE PREAMP WITH EQ
UK MADE CARNHILL TRANSFORMERS
UK MADE - BLORE EDWARDS EQ DUAL-CONCENTRIC SWITCH POTENTIOMETERS
HAND WIRED, HAND ASSEMBLED
80DB OF GAIN - RESISTOR STEPPED GAIN SWITCH
FULLY DISCRETE
TONE BUTTON - CHANGES INPUT TRANSFORMER IMPEDANCE FOR VARYING TONE
POLARITY SWITCH
48V PHANTOM POWER
INDUCTOR BASED 3 BAND EQ
LOW BAND BOOST/CUT - 35, 60, 110, 220 HZ
MID BAND BOOST/CUT - 360, 700, 1600, 3200, 4800, 7200 HZ
HIGH BAND BOOST/CUT - 10, 12, 16 KHZ
ADDITIONAL HIGH BAND FREQUENCY EQ POINTS ADDED (COMPARED TO VINTAGE 1073)
4 POSITION INDUCTOR BASED HIPASS FILTER - 50, 80, 160, 300 HZ
XLR MIC INPUTS (FRONT & BACK)
LINE LEVEL TRS INPUT
TS SEND/RECEIVE INSERT JACKS
XLR & TRS LINE LEVEL OUTPUTS
DIRECT IN, INSTRUMENT INPUT
OUTPUT CONTROL
LED LEVEL INDICATION
FREQ RESPONSE 20HZ - 20KHZ +/-.5 DB
19" RACK MOUNTABLE
INTERNAL IEC 115V/230V POWER INLET
